EQStarPROII harmonic drive 15/20 – DIY kit for development and assembling Harmonic Mount with payload 15/20 kg

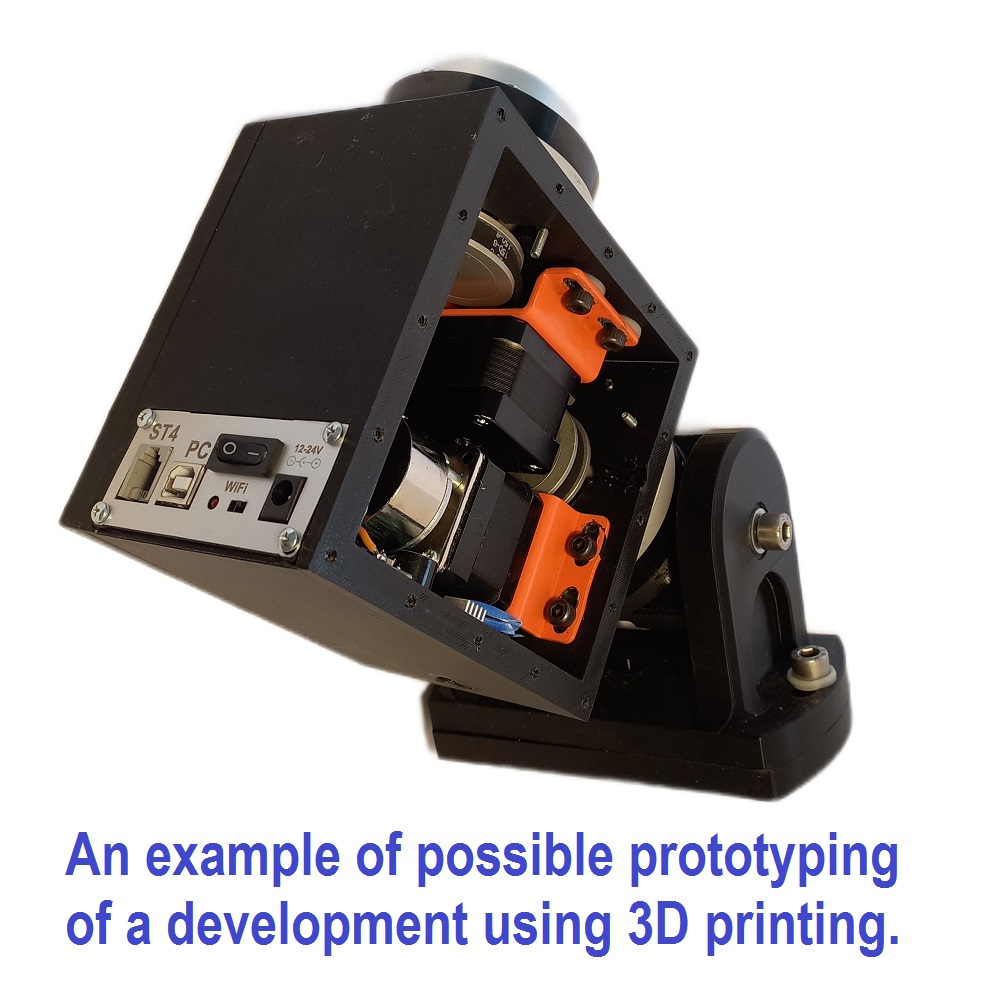

EQStarPROII harmonic drive kit 15/20 is designed for use in EQ/AZ astronomical mounts as a drive and control system.

Key features:

1) High positioning and tracking accuracy is achieved thanks to precision harmonic gearboxes. The periodic error of the drive is approximately ±10 arc seconds. Powerful harmonic gearboxes together with a belt gearbox provide a high gear ratio of 1:500, which ensures
stable transmission of high torque.

2) High load capacity of harmonic drives can withstand a payload of up to 15 kg without counterweights and a payload of up to 20 kg with the addition of counterweights.

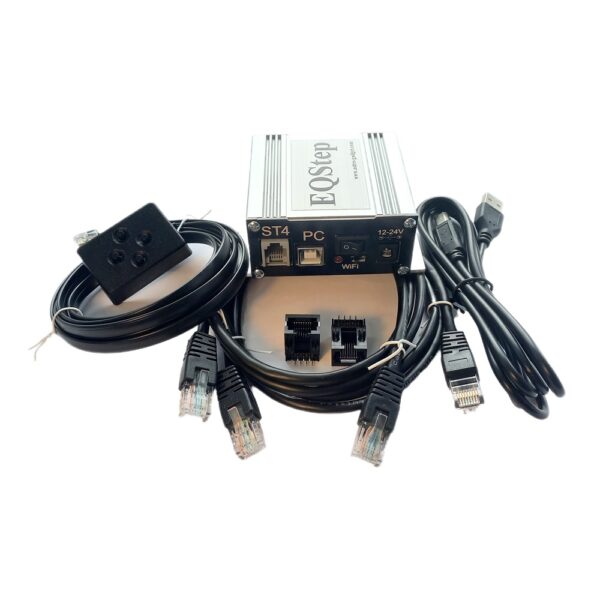

3) The EQStarPROII control system provides silent, smooth and precise control of the mount both autonomously and using a computer or mobile device (phone, tablet, etc.).
For control from a PC, you can use the EQMod, Green Swamp Software (GSS) or SynScan PRO applications. EQStarPROII can work with any astronomical programs that support the ASCOM (Windows OS) and INDI (Linux OS) platforms. For example, with the Stellarium planetarium, Cartes du Ciel, StarCalc, KStars and others. Of the astrophotography and guiding programs, EQStarPROII supports NINA, MaximDL, APT, SGP, PHDGuiding and others.

For control from mobile devices, EQStarPROII works with the SynScan APP, SkySafari PLUS (PRO) and Stellarium Mobile applications.

EQStarPROII interacts with a PC via a USB cable from the standard kit, and with a mobile device – via Wi-Fi. EQStarPROII also supports work with a ZWO ASIAIR mini PC via a USB cable or via Wi-Fi.

EQStarPROII is equipped with a universal push-button joystick for manual control. It allows you to control the mount autonomously, without a computer, smartphone or tablet.



Brief characteristics of the EQStarPROII harmonic drive 15/20:

• The mount type is equatorial (azimuthal as an option)
• Interfaces for communication – USB, WiFi
• Power supply: 12 – 24 V, 5A
• Smooth acceleration and braking of the Step motor.
• RA and DEC full gear ratio – 1:500
• The positioning accuracy (resolution) of the entire system is 0.2 arc seconds.

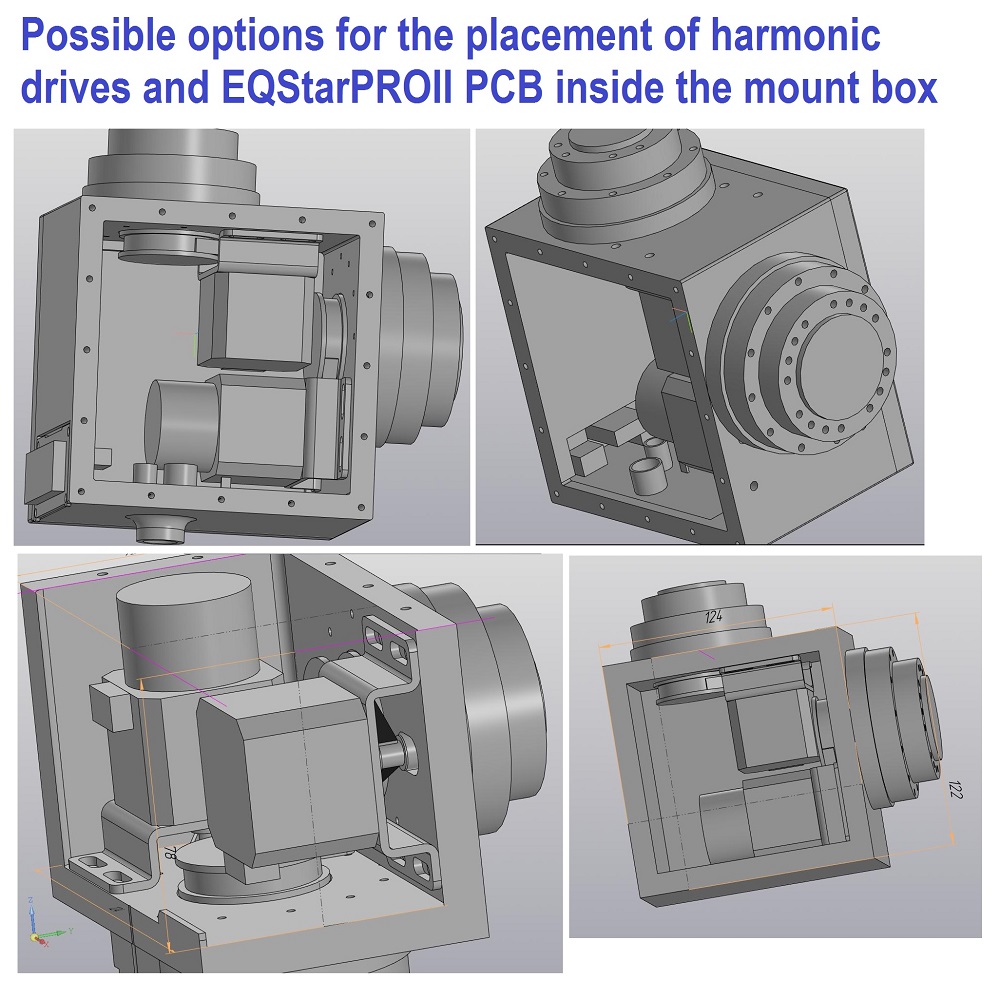

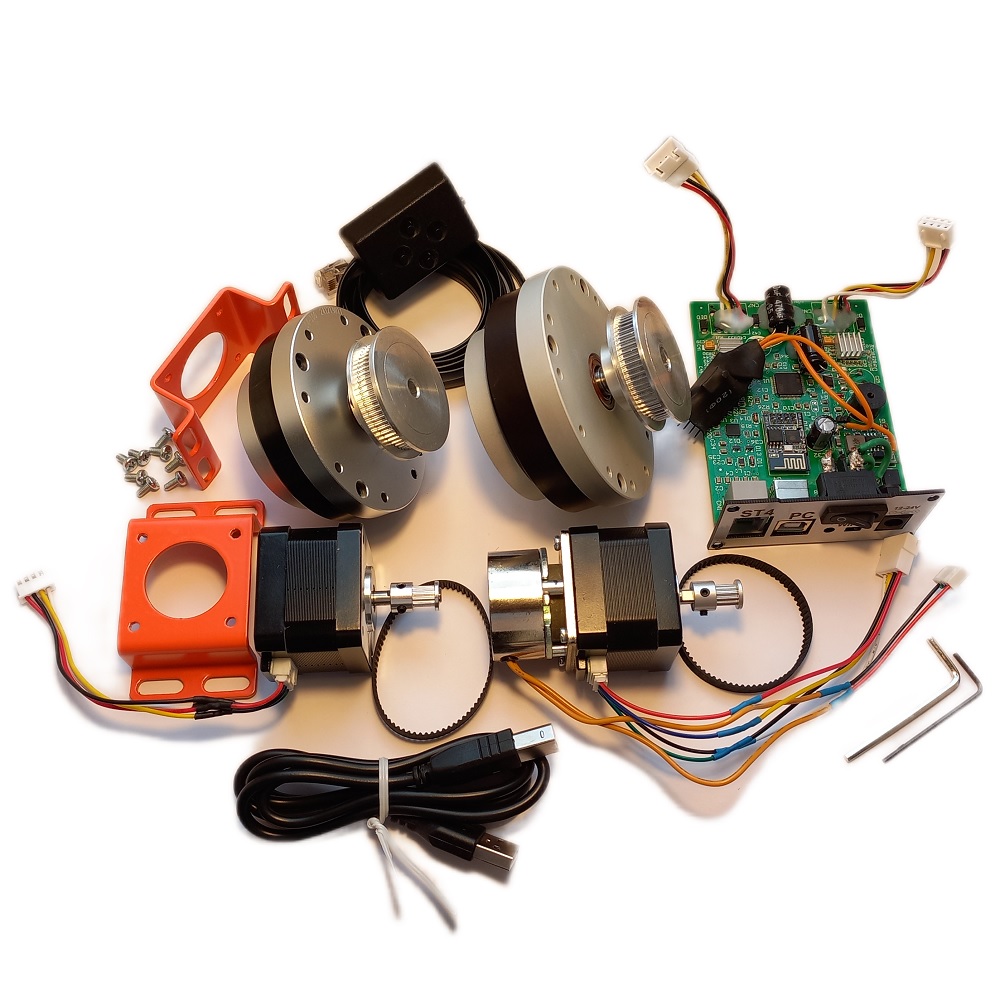

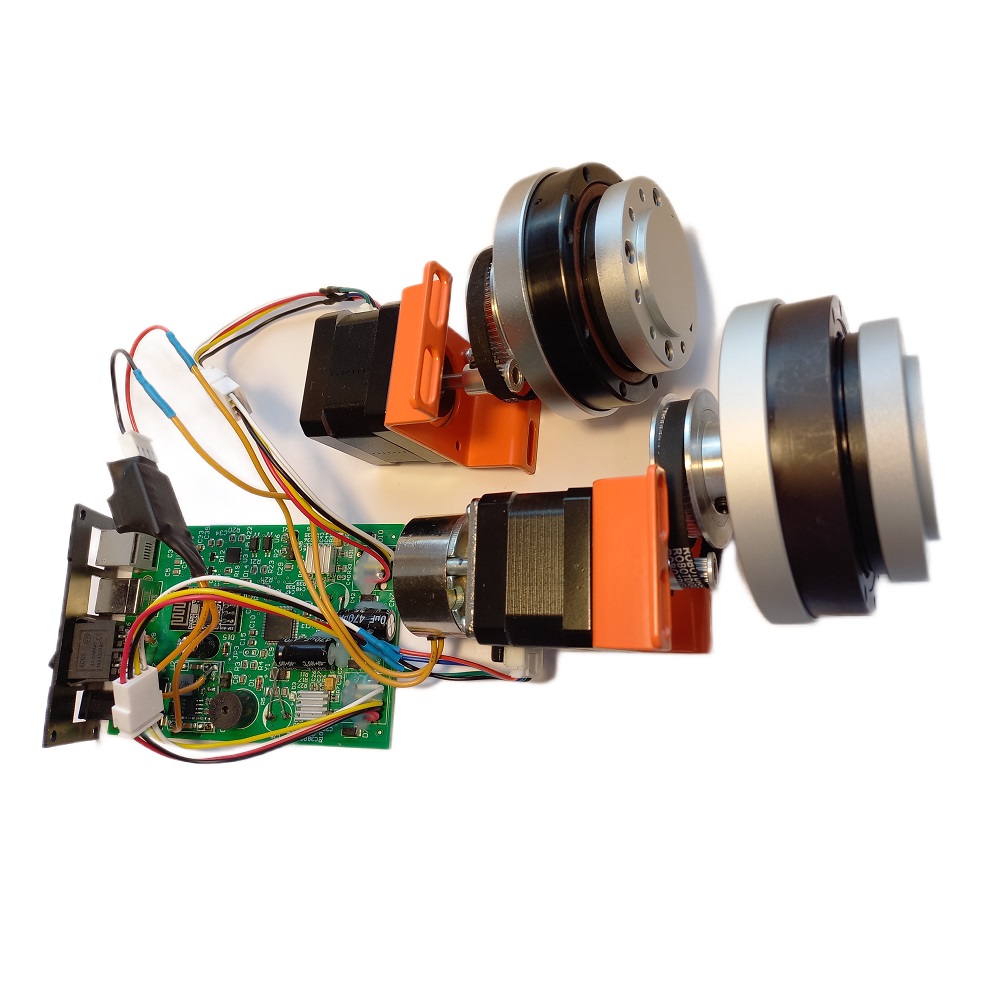

 The kit includes:

• EQStarPROII controller PCB
• USB cable
• Push-button joystick
• Harmonic reducers – 2 pcs.
• Large pulleys – 2 pcs.
• Small pulleys – 2 pcs.
• Toothed belts – 2 pcs.
• Motor brackets – 2 pcs.
• Stepper motors – 2 pcs.
• Motor mounting screws – 8 pcs.
• Hex keys – 2 pcs

Documentation, drivers and applications

In order to improve the quality of the product, the manufacturer reserves the right to make changes to the design and equipment without notifying users.
